Multi-Agent Orchestrator

Flexible, lightweight open-source framework for orchestrating multiple AI agents to handle complex conversations.

🔄 Project Status

📚 Explore Full Documentation

🔖 Features

• 🧠 Intelligent intent classification — Dynamically route queries to the most suitable agent based on context and content.
• 🔤 Dual language support — Fully implemented in both Python and TypeScript.
• 🌊 Flexible agent responses — Support for both streaming and non-streaming responses from different agents.
• 📚 Context management — Maintain and utilize conversation context across multiple agents for coherent interactions.
• 🔧 Extensible architecture — Easily integrate new agents or customize existing ones to fit your specific needs.
• 🌐 Universal deployment — Run anywhere - from AWS Lambda to your local environment or any cloud platform.
• 📦 Pre-built agents and classifiers — A variety of ready-to-use agents and multiple classifier implementations available.

What’s the Multi-Agent Orchestrator ❓

The Multi-Agent Orchestrator is a flexible framework for managing multiple AI agents and handling complex conversations. It intelligently routes queries and maintains context across interactions.

The system offers pre-built components for quick deployment, while also allowing easy integration of custom agents and conversation messages storage solutions.

This adaptability makes it suitable for a wide range of applications, from simple chatbots to sophisticated AI systems, accommodating diverse requirements and scaling efficiently.

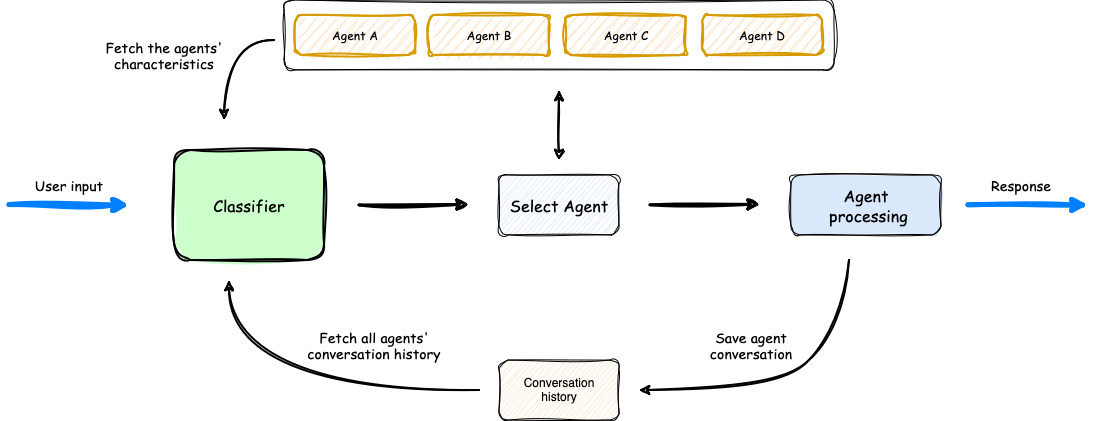

🏗️ High-level architecture flow diagram

1. The process begins with user input, which is analyzed by a Classifier.
2. The Classifier leverages both Agents’ Characteristics and Agents’ Conversation history to select the most appropriate agent for the task.
3. Once an agent is selected, it processes the user input.
4. The orchestrator then saves the conversation, updating the Agents’ Conversation history, before delivering the response back to the user.

💬 Demo App

To quickly get a feel for the Multi-Agent Orchestrator, we’ve provided a Demo App with a few basic agents. This interactive demo showcases the orchestrator’s capabilities in a user-friendly interface. To learn more about setting up and running the demo app, please refer to our Demo App section.

In the screen recording below, we demonstrate an extended version of the demo app that uses 6 specialized agents:

• Travel Agent: Powered by an Amazon Lex Bot
• Weather Agent: Utilizes a Bedrock LLM Agent with a tool to query the open-meteo API
• Restaurant Agent: Implemented as an Amazon Bedrock Agent
• Math Agent: Utilizes a Bedrock LLM Agent with two tools for executing mathematical operations
• Tech Agent: A Bedrock LLM Agent designed to answer questions on technical topics
• Health Agent: A Bedrock LLM Agent focused on addressing health-related queries

Watch as the system seamlessly switches context between diverse topics, from booking flights to checking weather, solving math problems, and providing health information.
Notice how the appropriate agent is selected for each query, maintaining coherence even with brief follow-up inputs.

The demo highlights the system’s ability to handle complex, multi-turn conversations while preserving context and leveraging specialized agents across various domains.

To quickly get a feel for the Multi-Agent Orchestrator, check out our Demo App. Additional code examples are available in both the documentation and the examples folder.

🎯 Examples & Quick Start

Get hands-on experience with the Multi-Agent Orchestrator through our diverse set of examples:

• Ready-to-run Scripts: Start locally with our collection of standalone scripts in both Python and TypeScript.
• Demo Applications:
  • Streamlit Global Demo: A single Streamlit application showcasing multiple demos, including:
    • AI Movie Production Studio
    • AI Travel Planner
  • Chat Demo App:
    • Explore multiple specialized agents handling various domains like travel, weather, math, and health
  • E-commerce Support Simulator: Experience AI-powered customer support with:
    • Automated response generation for common queries
    • Intelligent routing of complex issues to human support
    • Real-time chat and email-style communication
    • Human-in-the-loop interactions for complex cases
• Sample Projects: Explore our example implementations in the examples folder:
  • chat-demo-app: Web-based chat interface with multiple specialized agents
  • ecommerce-support-simulator: AI-powered customer support system
  • chat-chainlit-app: Chat application built with Chainlit
  • fast-api-streaming: FastAPI implementation with streaming support
  • text-2-structured-output: Natural Language to Structured Data
  • bedrock-inline-agents: Bedrock Inline Agents sample
  • bedrock-prompt-routing: Bedrock Prompt Routing sample code for BedrockClassifierand BedrockLLMAgent

All examples are available in both Python and TypeScript implementations. Check out our documentation for comprehensive guides on setting up and using the Multi-Agent Orchestrator!

🌟 Use cases and implementations

Discover creative implementations and diverse applications of the Multi-Agent Orchestrator:

• From ‘Bonjour’ to ‘Boarding Pass’: Multilingual AI Chatbot for Flight Reservations

  This article demonstrates how to build a multilingual chatbot using the Multi-Agent Orchestrator framework. The article explains how to use an Amazon Lex bot as an agent, along with 2 other new agents to make it work in many languages with just a few lines of code.

• Beyond Auto-Replies: Building an AI-Powered E-commerce Support system

  This article demonstrates how to build an AI-driven multi-agent system for automated e-commerce customer email support. It covers the architecture and setup of specialized AI agents using the Multi-Agent Orchestrator framework, integrating automated processing with human-in-the-loop oversight. The guide explores email ingestion, intelligent routing, automated response generation, and human verification, providing a comprehensive approach to balancing AI efficiency with human expertise in customer support.

• Speak Up, AI: Voicing Your Agents with Amazon Connect, Lex, and Bedrock

  This article demonstrates how to build an AI customer call center. It covers the architecture and setup of specialized AI agents using the Multi-Agent Orchestrator framework interacting with voice via Amazon Connect and Amazon Lex.

  Here’s the section to add under “Use cases and implementations”:

• Unlock Bedrock InvokeInlineAgent API’s Hidden Potential

  Learn how to scale Amazon Bedrock Agents beyond knowledge base limitations using the Multi-Agent Orchestrator framework and InvokeInlineAgent API. This article demonstrates dynamic agent creation and knowledge base selection for enterprise-scale AI applications.

• Supercharging Amazon Bedrock Flows

  Learn how to enhance Amazon Bedrock Flows with conversation memory and multi-flow orchestration using the Multi-Agent Orchestrator framework. This guide shows how to overcome Bedrock Flows’ limitations to build more sophisticated AI workflows with persistent memory and intelligent routing between flows.

TypeScript Version

Installation

npm install multi-agent-orchestrator

Usage

The following example demonstrates how to use the Multi-Agent Orchestrator with two different types of agents: a Bedrock LLM Agent with Converse API support and a Lex Bot Agent. This showcases the flexibility of the system in integrating various AI services.

import { MultiAgentOrchestrator, BedrockLLMAgent, LexBotAgent } from "multi-agent-orchestrator";

const orchestrator = new MultiAgentOrchestrator();

// Add a Bedrock LLM Agent with Converse API support
orchestrator.addAgent(
  new BedrockLLMAgent({
      name: "Tech Agent",
      description:
        "Specializes in technology areas including software development, hardware, AI, cybersecurity, blockchain, cloud computing, emerging tech innovations, and pricing/costs related to technology products and services.",
      streaming: true
  })
);

// Add a Lex Bot Agent for handling travel-related queries
orchestrator.addAgent(
  new LexBotAgent({
    name: "Travel Agent",
    description: "Helps users book and manage their flight reservations",
    botId: process.env.LEX_BOT_ID,
    botAliasId: process.env.LEX_BOT_ALIAS_ID,
    localeId: "en_US",
  })
);

// Example usage
const response = await orchestrator.routeRequest(
  "I want to book a flight",
  'user123',
  'session456'
);

// Handle the response (streaming or non-streaming)
if (response.streaming == true) {
    console.log("\n** RESPONSE STREAMING ** \n");
    // Send metadata immediately
    console.log(`> Agent ID: ${response.metadata.agentId}`);
    console.log(`> Agent Name: ${response.metadata.agentName}`);
    console.log(`> User Input: ${response.metadata.userInput}`);
    console.log(`> User ID: ${response.metadata.userId}`);
    console.log(`> Session ID: ${response.metadata.sessionId}`);
    console.log(
      `> Additional Parameters:`,
      response.metadata.additionalParams
    );
    console.log(`\n> Response: `);

    // Stream the content
    for await (const chunk of response.output) {
      if (typeof chunk === "string") {
        process.stdout.write(chunk);
      } else {
        console.error("Received unexpected chunk type:", typeof chunk);
      }
    }

} else {
    // Handle non-streaming response (AgentProcessingResult)
    console.log("\n** RESPONSE ** \n");
    console.log(`> Agent ID: ${response.metadata.agentId}`);
    console.log(`> Agent Name: ${response.metadata.agentName}`);
    console.log(`> User Input: ${response.metadata.userInput}`);
    console.log(`> User ID: ${response.metadata.userId}`);
    console.log(`> Session ID: ${response.metadata.sessionId}`);
    console.log(
      `> Additional Parameters:`,
      response.metadata.additionalParams
    );
    console.log(`\n> Response: ${response.output}`);
}

Python Version

# Optional: Set up a virtual environment
python -m venv venv
source venv/bin/activate  # On Windows use `venv\Scripts\activate`
pip install multi-agent-orchestrator[aws]

Default Usage

Here’s an equivalent Python example demonstrating the use of the Multi-Agent Orchestrator with a Bedrock LLM Agent and a Lex Bot Agent:

import os
import asyncio
from multi_agent_orchestrator.orchestrator import MultiAgentOrchestrator
from multi_agent_orchestrator.agents import BedrockLLMAgent, LexBotAgent, BedrockLLMAgentOptions, LexBotAgentOptions, AgentCallbacks

orchestrator = MultiAgentOrchestrator()

class BedrockLLMAgentCallbacks(AgentCallbacks):
    def on_llm_new_token(self, token: str) -> None:
        # handle response streaming here
        print(token, end='', flush=True)

tech_agent = BedrockLLMAgent(BedrockLLMAgentOptions(
  name="Tech Agent",
  streaming=True,
  description="Specializes in technology areas including software development, hardware, AI, \
  cybersecurity, blockchain, cloud computing, emerging tech innovations, and pricing/costs \
  related to technology products and services.",
  model_id="anthropic.claude-3-sonnet-20240229-v1:0",
  callbacks=BedrockLLMAgentCallbacks()
))
orchestrator.add_agent(tech_agent)


# Add a Lex Bot Agent for handling travel-related queries
orchestrator.add_agent(
    LexBotAgent(LexBotAgentOptions(
        name="Travel Agent",
        description="Helps users book and manage their flight reservations",
        bot_id=os.environ.get('LEX_BOT_ID'),
        bot_alias_id=os.environ.get('LEX_BOT_ALIAS_ID'),
        locale_id="en_US",
    ))
)

async def main():
    # Example usage
    response = await orchestrator.route_request(
        "I want to book a flight",
        'user123',
        'session456'
    )

    # Handle the response (streaming or non-streaming)
    if response.streaming:
        print("\n** RESPONSE STREAMING ** \n")
        # Send metadata immediately
        print(f"> Agent ID: {response.metadata.agent_id}")
        print(f"> Agent Name: {response.metadata.agent_name}")
        print(f"> User Input: {response.metadata.user_input}")
        print(f"> User ID: {response.metadata.user_id}")
        print(f"> Session ID: {response.metadata.session_id}")
        print(f"> Additional Parameters: {response.metadata.additional_params}")
        print("\n> Response: ")

        # Stream the content
        async for chunk in response.output:
            if isinstance(chunk, str):
                print(chunk, end='', flush=True)
            else:
                print(f"Received unexpected chunk type: {type(chunk)}", file=sys.stderr)

    else:
        # Handle non-streaming response (AgentProcessingResult)
        print("\n** RESPONSE ** \n")
        print(f"> Agent ID: {response.metadata.agent_id}")
        print(f"> Agent Name: {response.metadata.agent_name}")
        print(f"> User Input: {response.metadata.user_input}")
        print(f"> User ID: {response.metadata.user_id}")
        print(f"> Session ID: {response.metadata.session_id}")
        print(f"> Additional Parameters: {response.metadata.additional_params}")
        print(f"\n> Response: {response.output.content}")

if __name__ == "__main__":
    asyncio.run(main())

These examples showcase:

1. The use of a Bedrock LLM Agent with Converse API support, allowing for multi-turn conversations.
2. Integration of a Lex Bot Agent for specialized tasks (in this case, travel-related queries).
3. The orchestrator’s ability to route requests to the most appropriate agent based on the input.
4. Handling of both streaming and non-streaming responses from different types of agents.

Modular Installation Options

The Multi-Agent Orchestrator is designed with a modular architecture, allowing you to install only the components you need while ensuring you always get the core functionality.

Installation Options

1. AWS Integration:

 pip install "multi-agent-orchestrator[aws]"

Includes core orchestration functionality with comprehensive AWS service integrations (BedrockLLMAgent, AmazonBedrockAgent, LambdaAgent, etc.)

2. Anthropic Integration:

pip install "multi-agent-orchestrator[anthropic]"

3. OpenAI Integration:

pip install "multi-agent-orchestrator[openai]"

Adds OpenAI’s GPT models for agents and classification, along with core packages.

4. Full Installation:

pip install "multi-agent-orchestrator[all]"

Includes all optional dependencies for maximum flexibility.

🙌 We Want to Hear From You!

Have something to share, discuss, or brainstorm? We’d love to connect with you and hear about your journey with the Multi-Agent Orchestrator framework. Here’s how you can get involved:

• 🙌 Show & Tell: Got a success story, cool project, or creative implementation? Share it with us in the Show and Tell section. Your work might inspire the entire community! 🎉

• 💬 General Discussion: Have questions, feedback, or suggestions? Join the conversation in our General Discussions section. It’s the perfect place to connect with other users and contributors.

• 💡 Ideas: Thinking of a new feature or improvement? Share your thoughts in the Ideas section. We’re always open to exploring innovative ways to make the orchestrator even better!

Let’s collaborate, learn from each other, and build something incredible together! 🚀

🤝 Contributing

We welcome contributions! Here’s how to get started:

1. 📚 Review our Contributing Guide
2. 💡 Create a GitHub Issue
3. 🔨 Submit a pull request

⚠️ For major changes, please open an issue first to discuss your proposal.

✅ Follow existing project structure and include documentation for new features.
